Reliability Safety Capacity

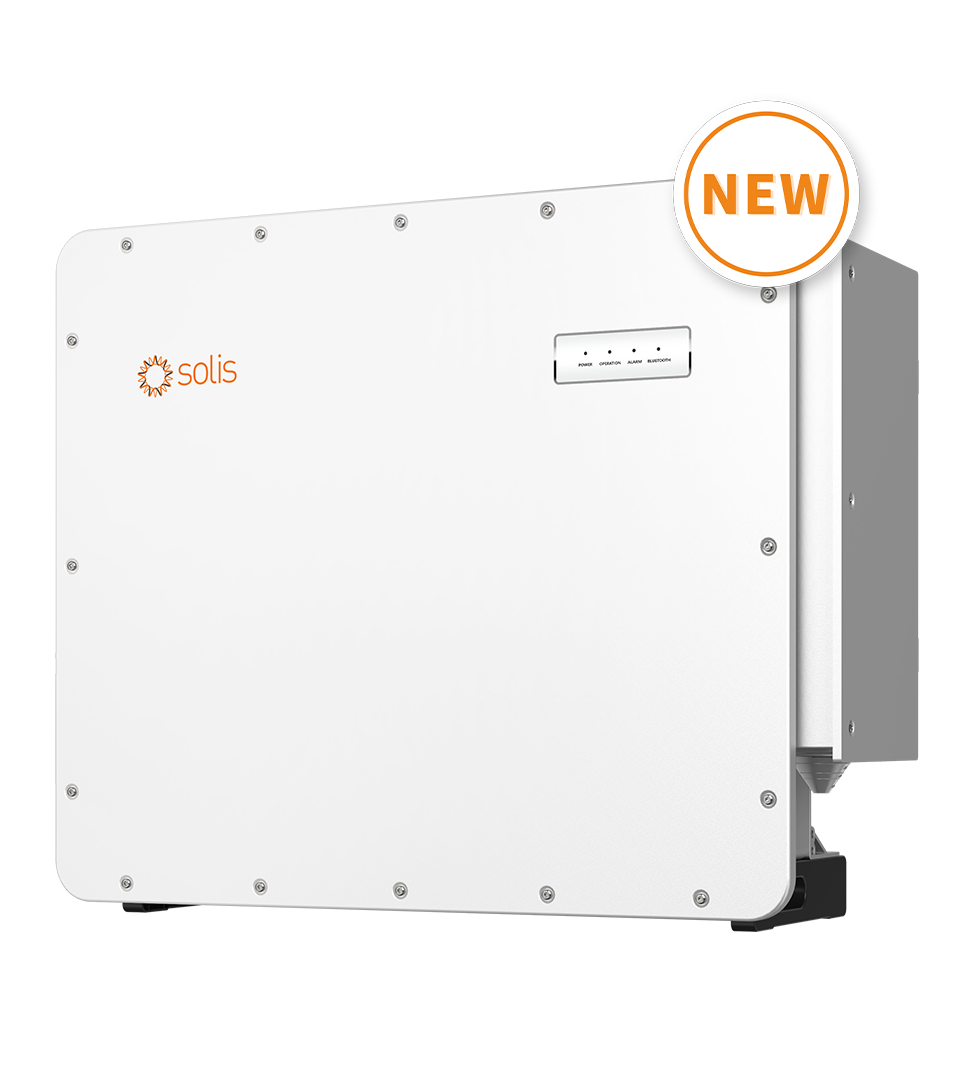

S6-GC3P150K07-NV-ND

The S6-GC3P150K07-NV-ND three-phase string inverter is the representative product of the new generation of Solis C&I solutions. With an MPPT current of up to 54A, it is perfect for all 182/210mm high-power PV modules and supports more than a 150% DC/AC ratio, bringing more yield. It features intelligent DC breaking and intelligent AC-DC terminal temperature monitoring functions to improve system safety performance. Combined with the rich online O&M tools provided by the Solis cloud platform, it can effectively reduce O&M costs, simplify O&M, and improve system efficiency. This inverter provides more efficient, safe, intelligent, and economical high-power inverter solutions for C&I PV systems.

Datasheet Download

Datasheet_S6-GC3P150K07-NV-ND_IRL_V1.9_202411

More Downloads

Three Phase Grid-Tied Inverter

Leading Features

7 MPPTs, max. efficiency 98.8%
> 150% DC/AC ratio
IP66
Supports export power control
DC side supports "Y" connector
AFCI protection, proactively reduces fire risk
Power line communication (PLC) (optional)
Intelligent string monitoring, smart I-V curve scan
Remote firmware upgrade with simple operation
Globally recognised branded componentry for longer life
Night time PID recovery function, increases overall system yield (optional)
Single MPPT maximum current 54A, perfectly match large current bifacial modules

Installation video

Download

Specification Download
Certificate Download
Manual Download
